HDMI Extender
HF-HKELIP200
Product Features
- Support point-to-point mode, one point-to-multipoint mode and cascade connection mode
- 802.3 Ethernet standard
- Support IR remote control
- Support USB mouse and keyboard extension
- The design of pure hardware, plug and play, no need for additional software
Specifications
- General
- HDMI TRANSMITTER
- HDMI RECEIVER
General
Resolutions
480p,720p,1080p
Audio
Sample rate: 32kHz,44.1kHz and 48kHz code
IR remote control
38 KHz (NEC)
Power adapter
DC: 5V/1A
The Max Power consumption
HDMI sender: 2.5W, HDMI receiver 2W
Size(L-W-H)
163*87*24mm
Weight
474g x 2
Operating Temperature/Humidity
0°C-45°C/10%-80%RH (no condensation)
Storage Temperature/Humidity
-10°C-70°C/5%-90%RH (no condensation)

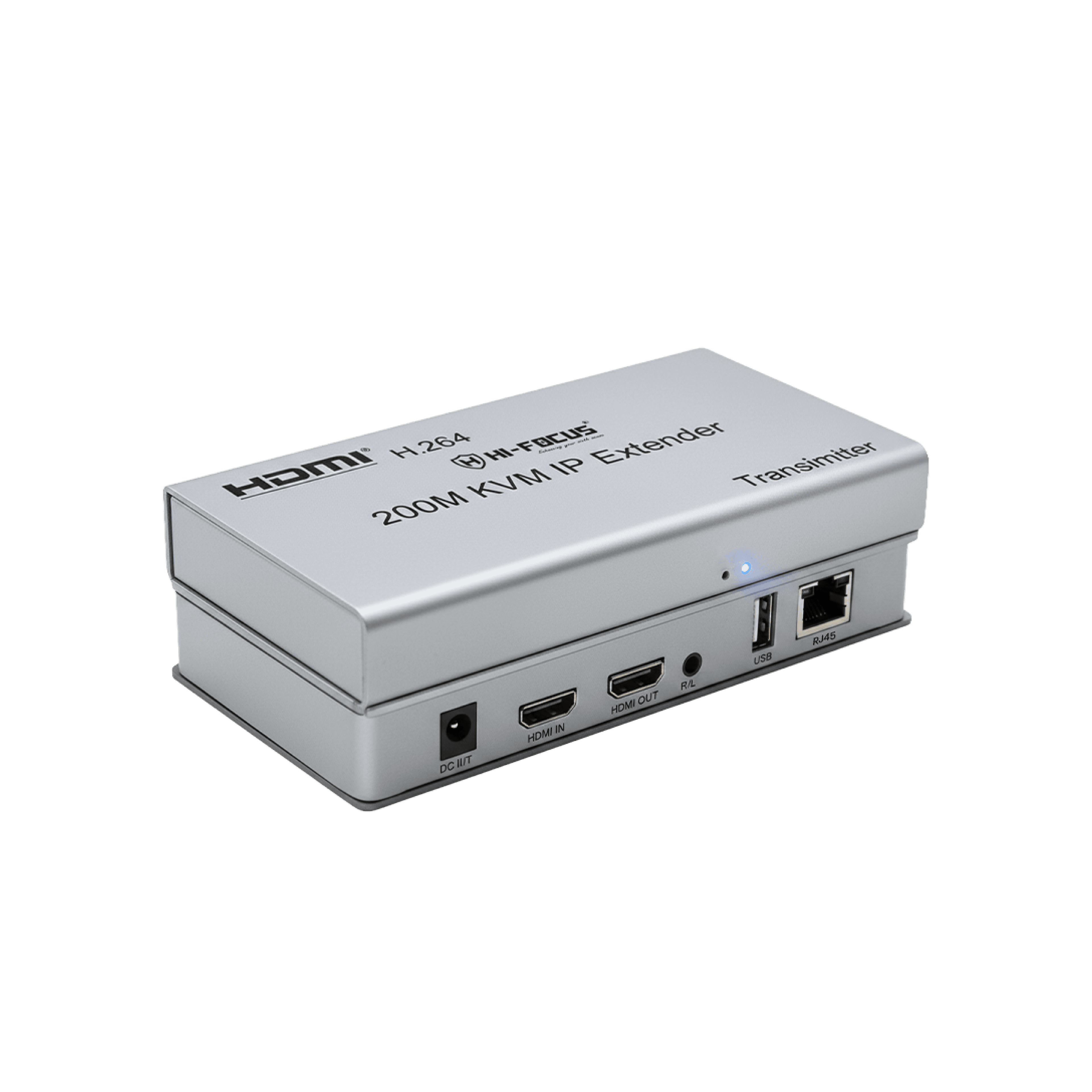

HDMI TRANSMITTER
DC/5V
5V power supply for the Transmitter
HDMI – IN
HDMI input, connect HDMI signal source
HDMI-OUT
HDMI output, connect HDMI display device
IR-TX
Connect IR transmitter
USB
USB output, connect computer
Ethernet
Network interface by cat5e/6
HDMI RECEIVER
DC/5V
5V power supply for the receiver
HDMI-OUT
HDMI output, connect HDMI signal device
IR-RX
Connect IR receiver
USB 1-2
USB input, mouse/Keyboard input
Ethernet
Network interface by cat5e/6
