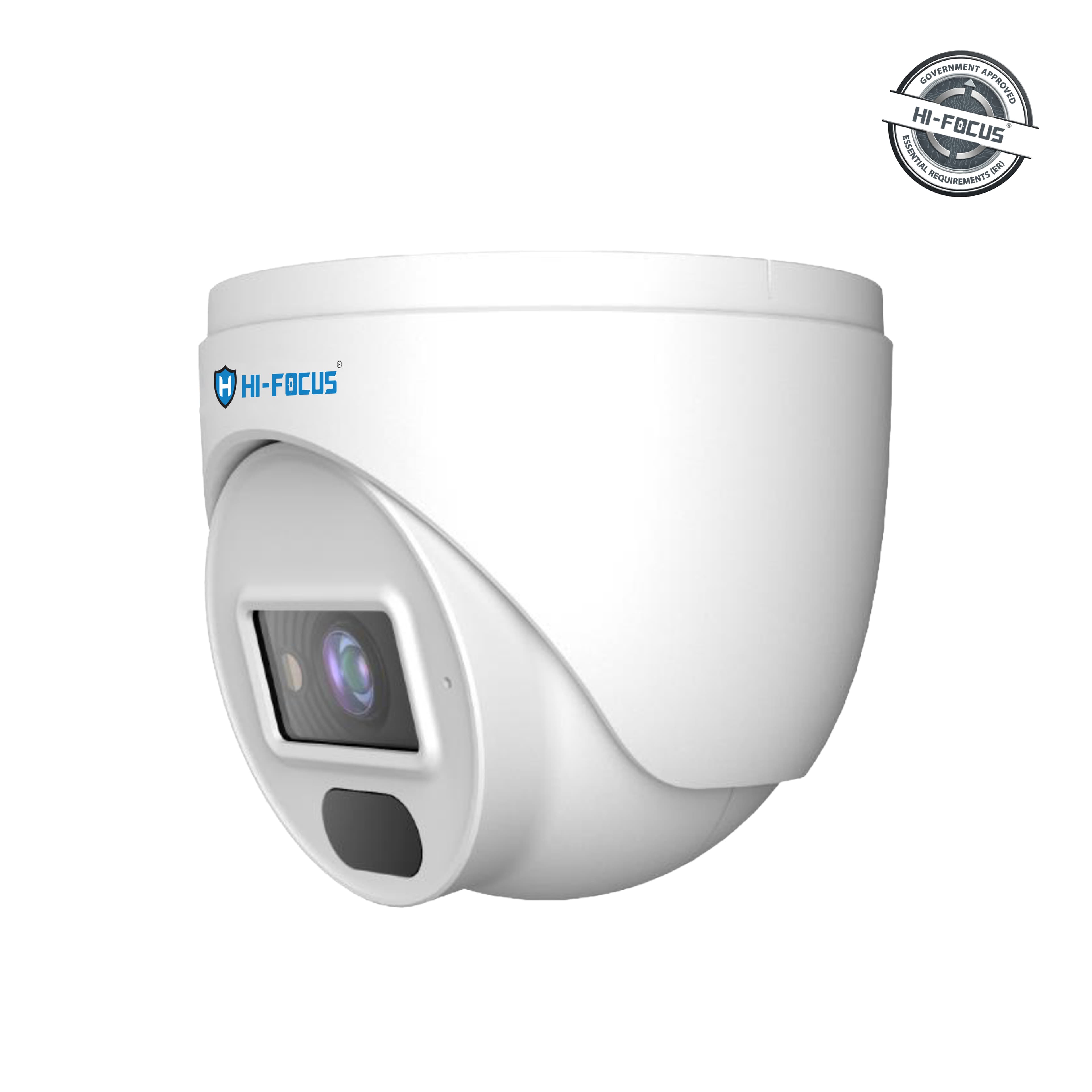

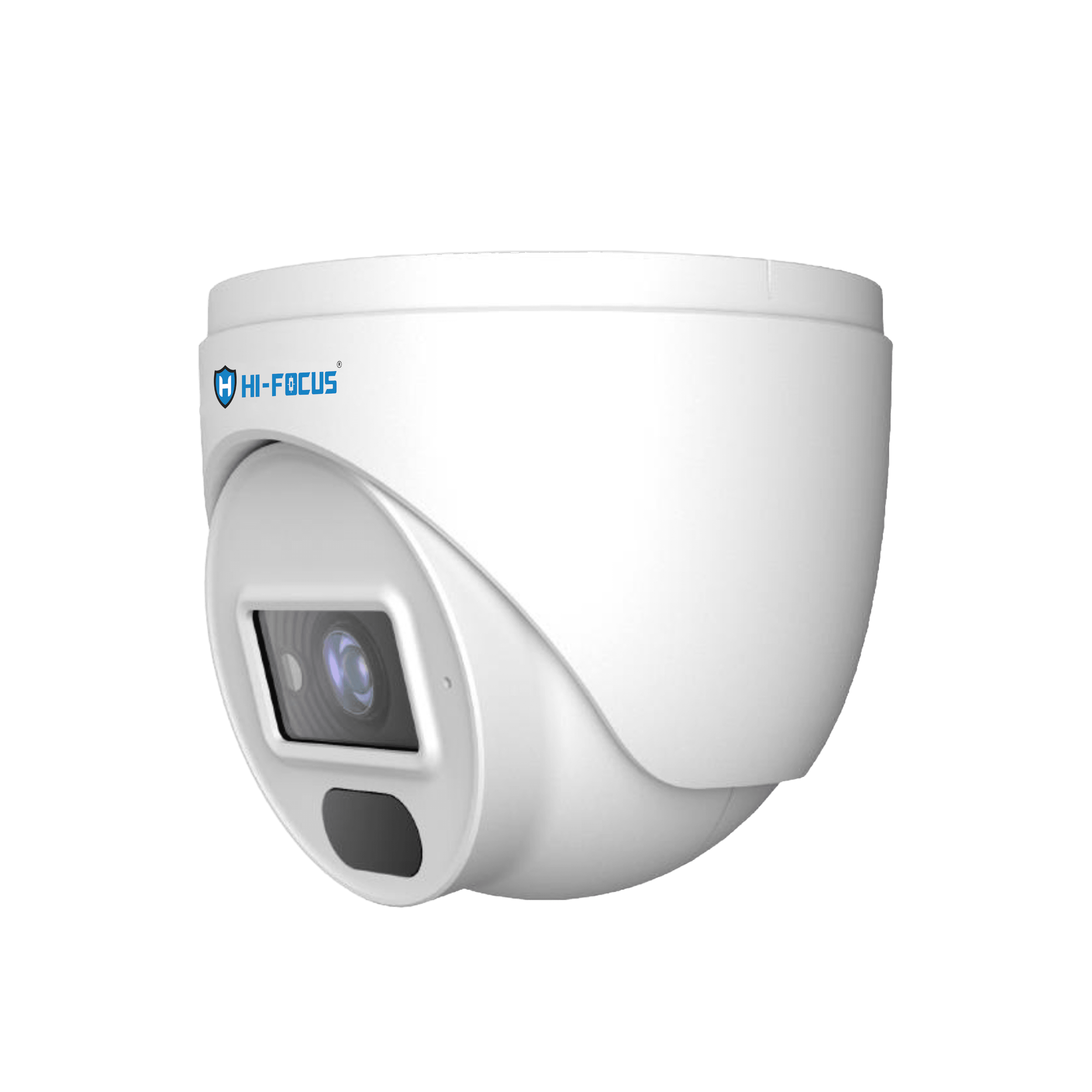

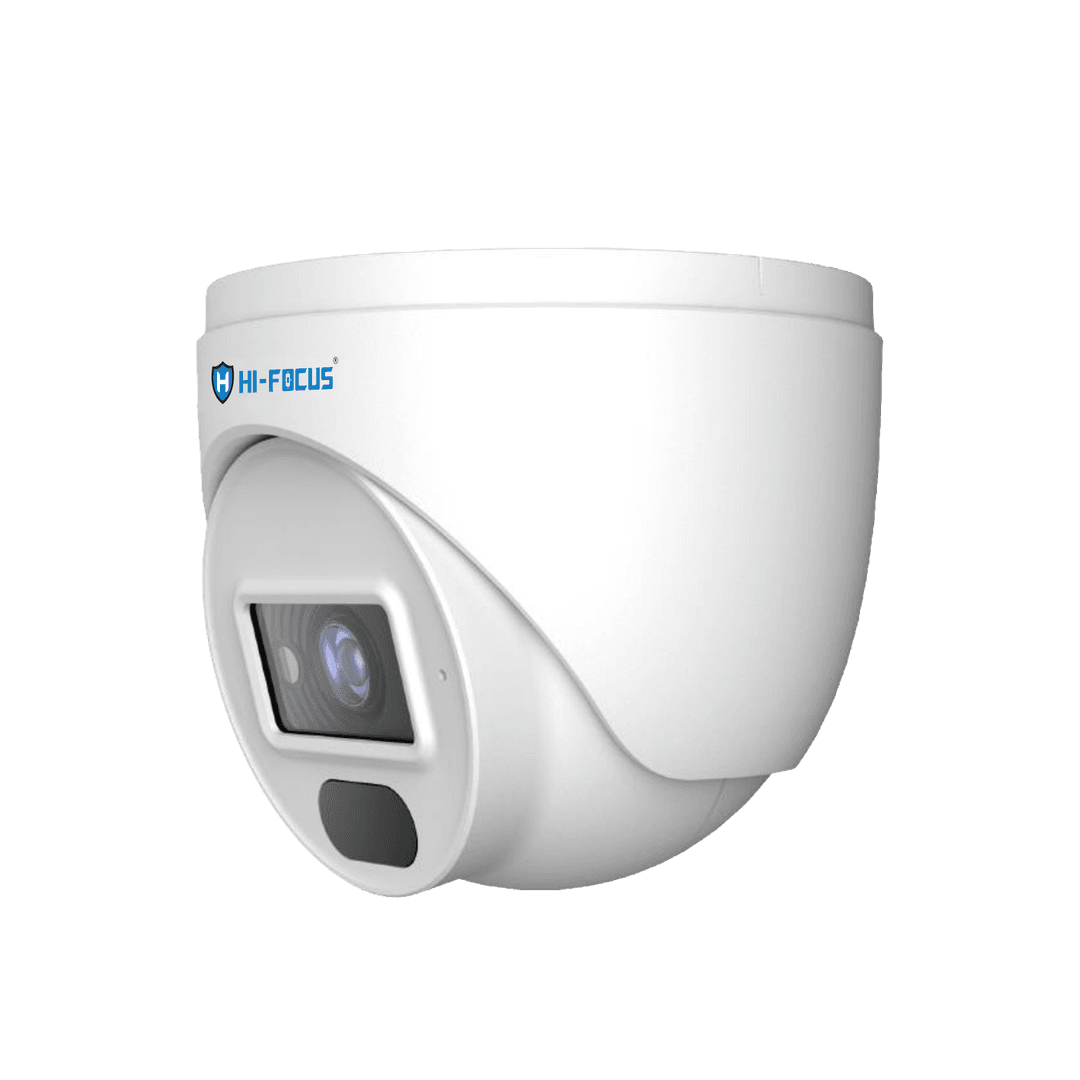

5 MP DOME CAMERA
HC-DS5501N2PA-DL
Product Features
- 5MP real-time image, high resolution, true color
- AHD / TVI / CVI lossless HD video output
- Support 960H CVBS output
- Up to 1000 TVL resolution
- CMOS progressive scan, perfectly capturing the moving object Support OSD menu
- High speed, long distance and real time transmission
- 24/7 full color imaging
- LED can be turned on or off automatically
- Support noise reduction function
- 20m LED distance
- IP67
- Support coaxial audio transmission
- Support COC
Specifications
- CAMERA
- FUNCTIONS
- OTHERS
CAMERA
Image Sensor
1/ 2.7” CMOS
Resolution
5MP
Image Size
2560 x 1936
Video Output
AHD/TVI/CVI/CVBS
Max. IR LEDs Length
30m, 2PCS 3600K soft Warm light
Audio
1CH built-in MIC
Image System
PAL/NTSC
Electronic Shutter
Auto
IR Distance
20m
Frame Rate
30fps (60Hz); 25fps (50Hz)
Min. illumination
0 lux (LED ON)
Lens
2.8mm, horizontal field of view: 107°
Lens Mount
M12
S / N Ratio
≥52dB (AGC OFF)
FUNCTIONS
Function Control
OSD (COC Control)
Smart LED
Manual or Auto mode
ICR
No
Digital WDR
Yes
Digital DNR
Yes, 2D DNR
AGC
Yes
Auto White Balance
Yes
Defog
No
BLC
Yes
Front Light Compensation
No
HLC
Yes
Sharpness
Yes
Contrast
Yes
Image Setting
Yes
Defect Correction
Auto
Language
English
Angle Adjustment
Pan: 0°~360° ; Tilt: 0°~75°; Rotation: 0°~360°
OTHERS
Power Supply
DC 12V (± 15%)
Power Consumption
LED Off : < 1W ; LED On : < 4W
Working Environment
-30°C ~ 50° C, 10% ~ 90% (relative humidity)
Dimensions (mm)
Ф 94.6 x 82.8
Weight (net)
Approx. 0.39KG
