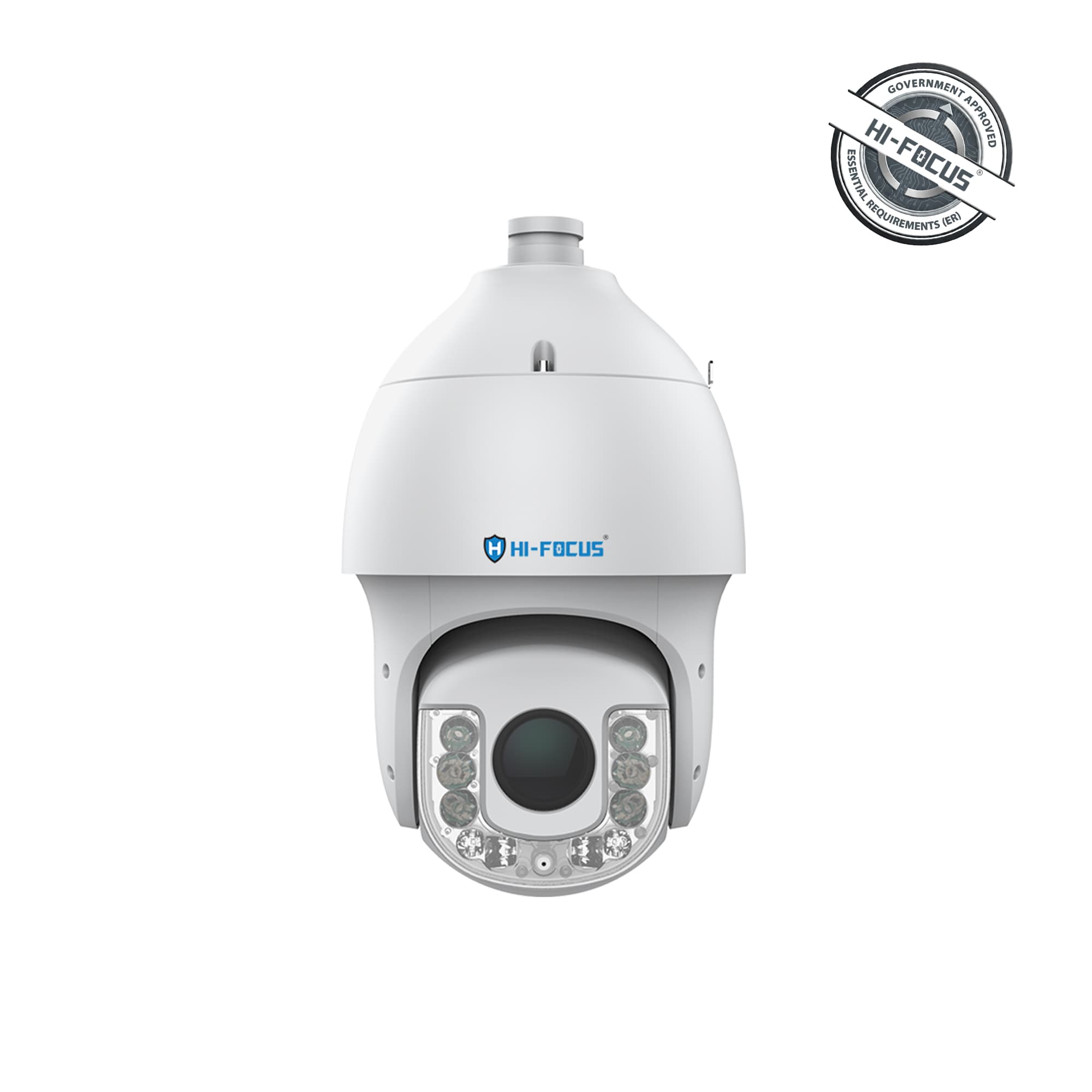

4MP 46X PTZ NETWORK CAMERA
HIPC-S6024RVZK-X46-I1
Product Features
- Resolution & Frame Rate: Up to 4MP, 2688×1520 @ 30fps
- Low Light Performance: Color: 0.0001 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Video Compression: Smart H.265+/ H.265 / H.264B / H.264M / H.264H / Motion JPEG
- Optical Zoom: 46X Optical Zoom
- Infrared Range: IR range up to 300m
- Storage Support: Supports microSD / microSDHC / microSDXC cards up to 512GB
- Smart Features: Supports smart surveillance and detects up to 32 faces in the same scene
- AI Classification: Supports human and vehicle classification
- Audio Interface: 1 Channel Audio Input, 1 Channel Audio Output
- Alarm Interface: 8 Channel Alarm Input, 2 Channel Alarm Output
- Operating Conditions :- 40 to 70 (-40 to 158), $95% RH
- Power Supply: AC24V±25%/DC24V ±10%, PoE: IEEE 802.3bt
- Protection Rating: IP66 & IK10 Rated Weatherproof and Vandal-Resistant Design
Specifications
- Camera CORE FEATURES
- PTZ
- VIDEO
- INTELLIGENT ANALYSIS
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
Camera CORE FEATURES
Image Sensor
1/1.8"CMOS
Min. Illumination
Color:0.0001lux@ (F1.6,AGC ON), B/W:0lux with IR
Shutter Speed
1s~1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
Up to 300m
Wavelength
850nm
IR LEDs
10
Whitelight Distance
50m
White LEDs
4
IR Irradiation Angle
Yes
WDR
120dB
S/N
>52dB
Focal Length
4.3mm-198mm
Aperture Range
F1.6~F5.3
Aperture Type
Auto(P-Iris)
Field of View
59.2~2.2°(H): 34.6°~1.3°(v): 66.7~2.5°(D)
Focus Control
Auto/Semi-auto/Manual
Close Focus Distance
1000mm~1500mm
DORI Distance
Detect:2414m Observe:958m Recognize:483m Identify:241m
PTZ
Optical Zoom
46x
Digital Zoom
16x
Zoom Speed
<5s
Pan Range
0~360°(P)
Pan speed
Manual Speed:0.1°~180°/s Preset Speed:240°/s
Tilt Range
-16°~90°(T) (Default-3°~90°)
3D Position
Supported
Preset
500
Cruise
16(up to 32 presets per cruise)
Pattern
8
Power-off Memory
Supported
VIDEO
Video Compression
Smart H.265+/H.265/H.264B/ H.264M/H.264H/Motion JPEG
Video Bit Rate
32Kbps~16Mbps
Audio Compression
G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate
8kHz/32kHz/48kHz
Max. Resolution
4MP,2688×1520@30fps
Main Stream
PAL: 25fps(2688×1520,2560x 1440,2304x1296,1920×1080), 50fps (1920×1080) NTSC:30fps(2688×1520,2560×] 440,2304×1296,1920×1080), 60fps(1920×1080)
Sub Stream
PAL:25fps(1920×1080,1280×960, 1280×720,704×576,640×480,704 ×288,352×288) NTSC:30fps(1920x1080,1280x960 ,1280×720,704×480,640×480, 704×240,352×240)
Third Stream
PAL:25fps(704×576,640×360,704 ×288,352×288) NTSC:30fps(704×480,640×360, 704×240,352×240)
Fourth Stream
PAL:25fps(704×576,704×288, 640×360,352×288) NTSC:30fps(704×480,704×240, 640×360,352×240)
BLC
Supported
HLC
Supported
AGC
Supported
3DNR
Supported
White Balance
Auto/Semi-Auto/Manual/Sunshine/Nature Light/ Warmlight Lamp/Daylight Lamp/Filament Lamp/ Lock White Balance
ROI
7 areas
OSD
5 areas
Defog
Supported
Privacy Mask
24 areas
INTELLIGENT ANALYSIS
Basic event
Human/Vehicle Classification, Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Heatmap, Loitering, Running, Parking, People Counting, Crowd Detection, Safety Helmet Detection, On Duty Detection, Video Abnormal, Audio Abnormal
General Alarm
Motion Detection, Mask Alarm, Alarm Input
Exceptions Alarm Alarm
Disk Full, Disk R/W Error,Recording Exception, IP Address Conflict, MAC Address Conflict, FTP Server Exception, Network cable disconnected
Linkage Method
Send Email, Trigger Sound, Trigger Recording, Trigger Capture, Notify Surveillance Center, Alarm Output
Auto-Tracking
Supported
Face Mode
Face Capture
Face Capture Performance
Best Face Size 60 Pixels; Minimum face size 19 Pixels; Best facial capture distance s100m; Detect up to 32 faces at the same scene; Capture up to 16 faces at the same scene; Capture rate 299% (continuous scene with 10 people or less); Gender 85%,age (±5) 85%,mask 90%,glasses 85%,beard 80% (Less than 10 people in view)
SECURITY
Cyber security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade,trusted boot
INTERFACE
Network Interface
1xRJ45 (10/100Base-T)
Audio
1CH IN / 1CH OUT
Alarm
8CH IN / 2CH OUT
Built-in Speaker
1Ch
Reset Button
Supported
On-board Storage
Support microSD/microSDHC/microSDXC card,up to 512GB
Additional Interfaces
RS-485
NETWORK
ANR
Supported
Protocols
RTSPS, RTMP, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP v3, DHCP, DNS, DDNS, NTP, SMTP, TLS v1.3, SSL, QoS, IPv4, IPv6, PPPoE, SSH, Unicast, Multicast, ARP, RTP, SRTP, FTP, SFTP
System Compatibility
ONVIF(Profile S/T/G/M), SDK, CGI, Milestone, RTSP, RTMP
Remote Connection
≤2
User/Host
32users, Level 4:Admin/Browse/Browse+Control/Browse+Control+Set
Client
HF Prime VMS
GENERAL
Operating Temperature
-40°C~70°C (-40°F~158°F)
Operating Humidity
≤95%RH
Storage Temperature
-40°C~70°C(-40°F~158°F)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
AC24V±25%/DC24V±10%, PoE:IEEE 802.3bt
Power Consumption
13.4W, 45W
Ingress Protection
Surge4000V, ESD6000V,IP66
Vandal Resistance
IK10
Material
Metal
Boundary Dimensions
222(D)372(H)mm
Package Dimensions
320(L)320(W)520(H)mm
NetWeight
5.3kg
GrossWeight
8.45kg
