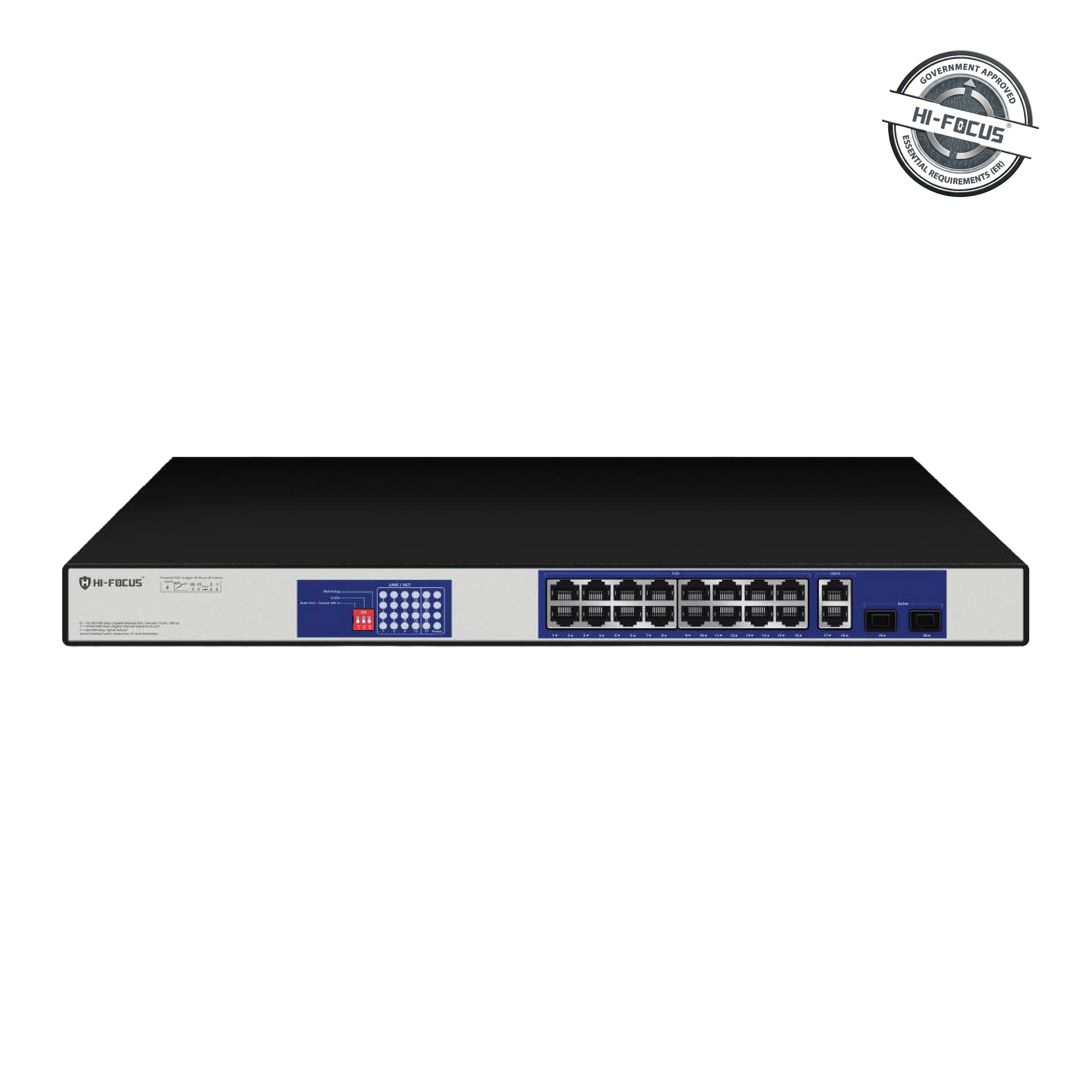

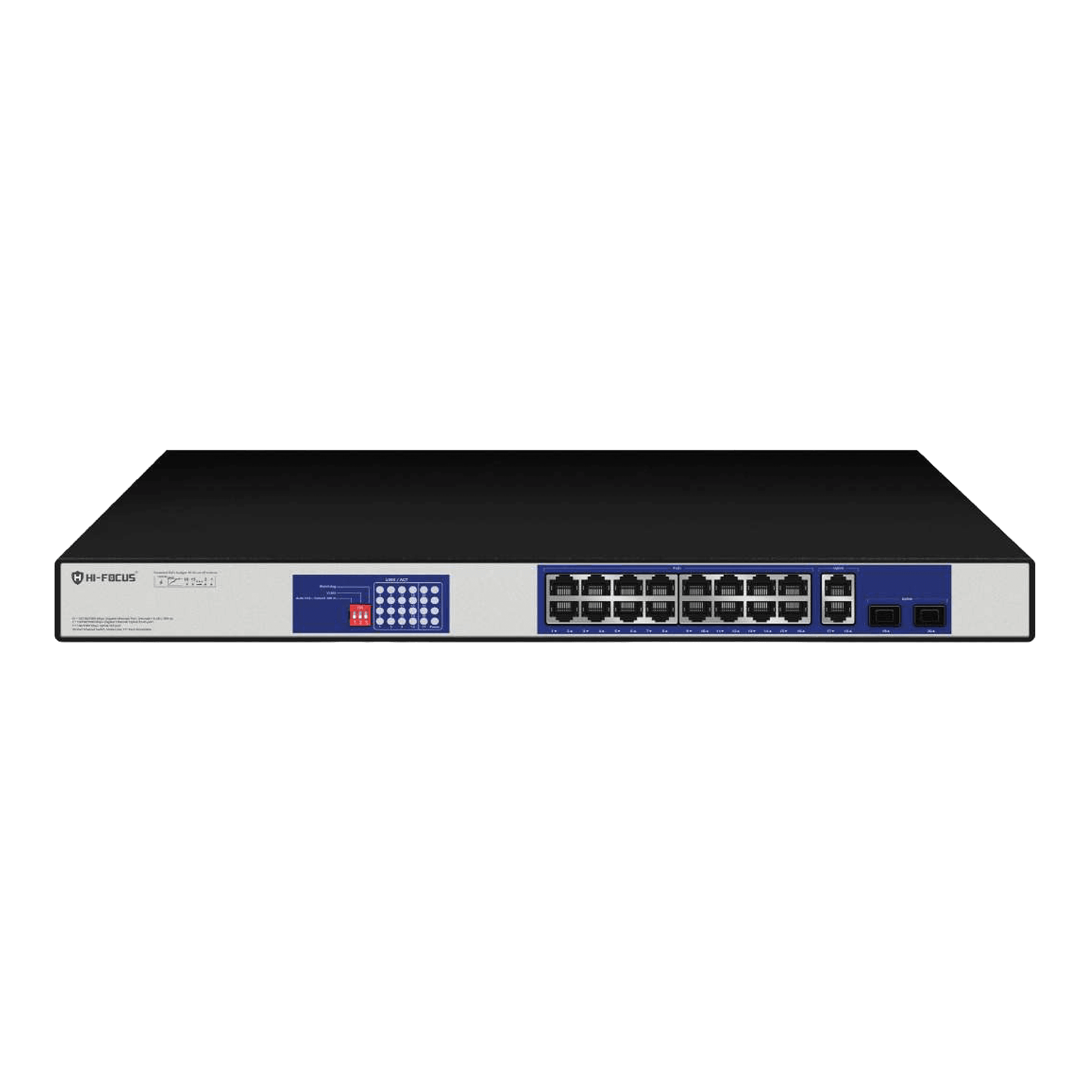

16 PORT GIGA POE SWITCH

HF-SGGW16-DS200W

Product Features

16*10/100/1000M + 2*10/100/1000M RJ45 +2*100/1000M SFP
Port PoE Switch,1-16 ports support IEEE 802.3af/at;
Comply with IEEE 802.3, IEEE 802.3u,lEE802.3ab,IEE802.3z standards;
PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
Support AI Watchdog, Port self-healing, VLAN, extend 300meter distance,
Auto Speed Change, Priority port & reduce the after-resale;
Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;
The power supply is AC200W+AC200W; With 6KV Surge Protection;
2 years warranty.

Specifications

Hardware Specifications
Software Specifications

Hardware Specifications

Fixed Port

16*10/100/1000Base-T/TX PoE ports (Data/Power) 2*10/100/1000Base-T/TX RJ45 ports (Data) 2*100/1000Base-X uplink SFP fiber slot (Data)

POE Port

Port 1-16 support PoE@lEEE802.3af/at

Feature

With the Dial code switch, support port priority by default. E: Al Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100meters; V: Turn on, 1-16 Port support each port Isolation &VLAN; D: Turn on, 1-16 Port support Al-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.

Fan

Non-Fan, silent working status can satisfymore users with different requirement.

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000base-X; IEEE802.3u 100Base-FX; IEEE802.3x.

PoE Standard

IEEE802.3af/at

Ethernet Port Feature

Software Specifications

Fiber Port Feature

Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)

Forwarding Mode

Store and Forward

Switching Capacity

Forwarding Mode

29.76Mpps

MAC

Buffer Memory

Twisted Pair Transmission

10BASE-T: Cat5 UTP (≤300meter) 100BASE-TX: Cat5 or later UTP (≤100meter) 1000BASE-T: Cat5 or later UTP (≤100meter)

Power Supply Pin

Default 1/2(+), 3/6(-)

MAX/AVERAGE Power Per Port

30W/15.4W

Total PWR/ Input Voltage

200W(100-240V

Power Consumption

Standby:< 5W; Full load:<200W

LED Indicator

Power indicator: PWR (Green); Network indicator: 1-16(Link/Act)/ (Green), 17-20(Link/Act)/ (Green)

Power Supply

Built in switching power supply(Dual Power)200W, AC100~240V 50-60Hz

Operation TEMP/ Humidity

-20~+55°C:5%~90% RH non condensing

Storage TEMP/ Humidity

-40~+75°C;5%~95% RH non condensing

Dimension

330*220*44mm

Net /Gross Weight

<3kg/<4kg

Installation Method

desktop type, wall mounted, 19-inch 1U cabinet installation

Protection

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/ DM±2kV; Port: ±4kV

Protection Level

IP30

Warranty

2 years, lifetime maintenance.
