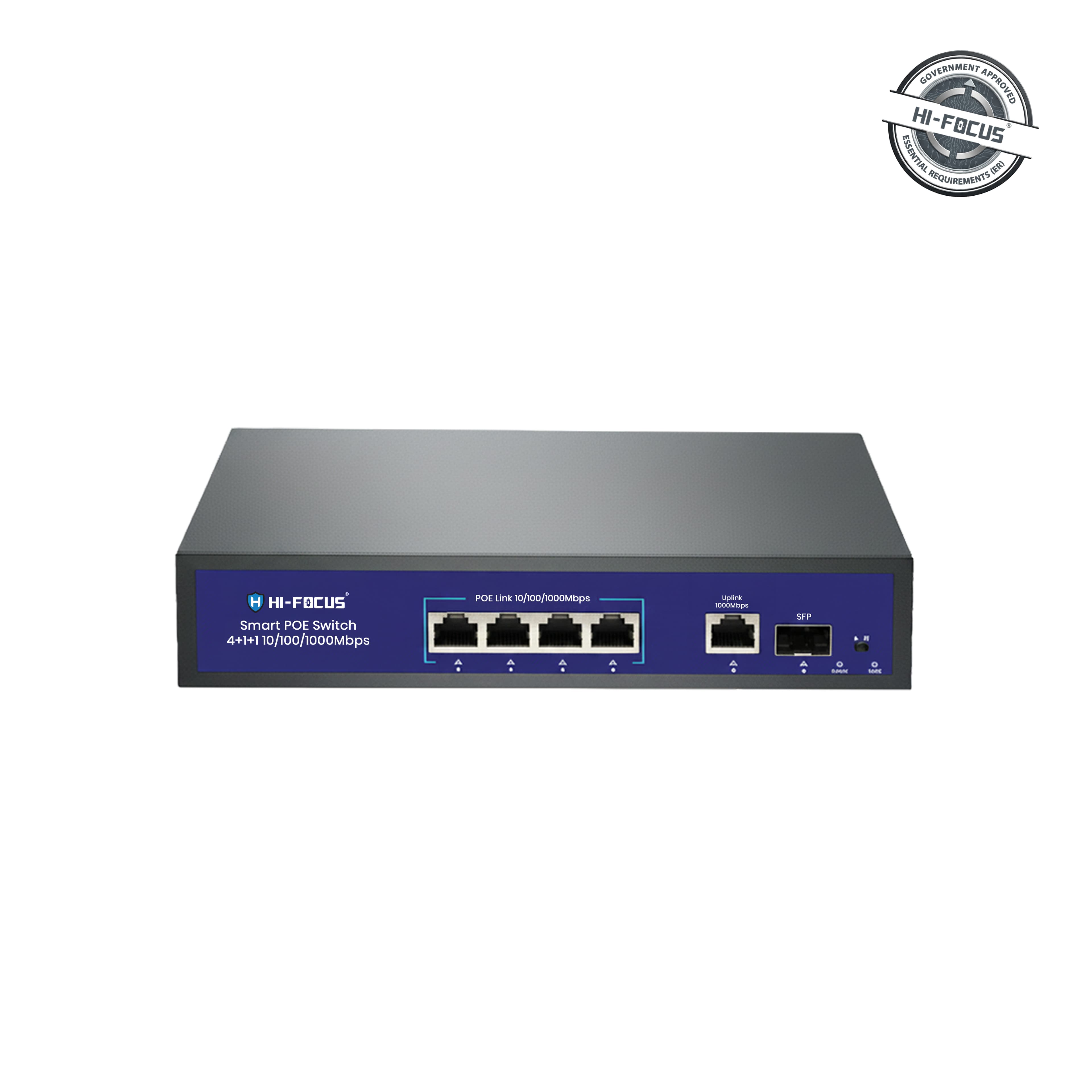

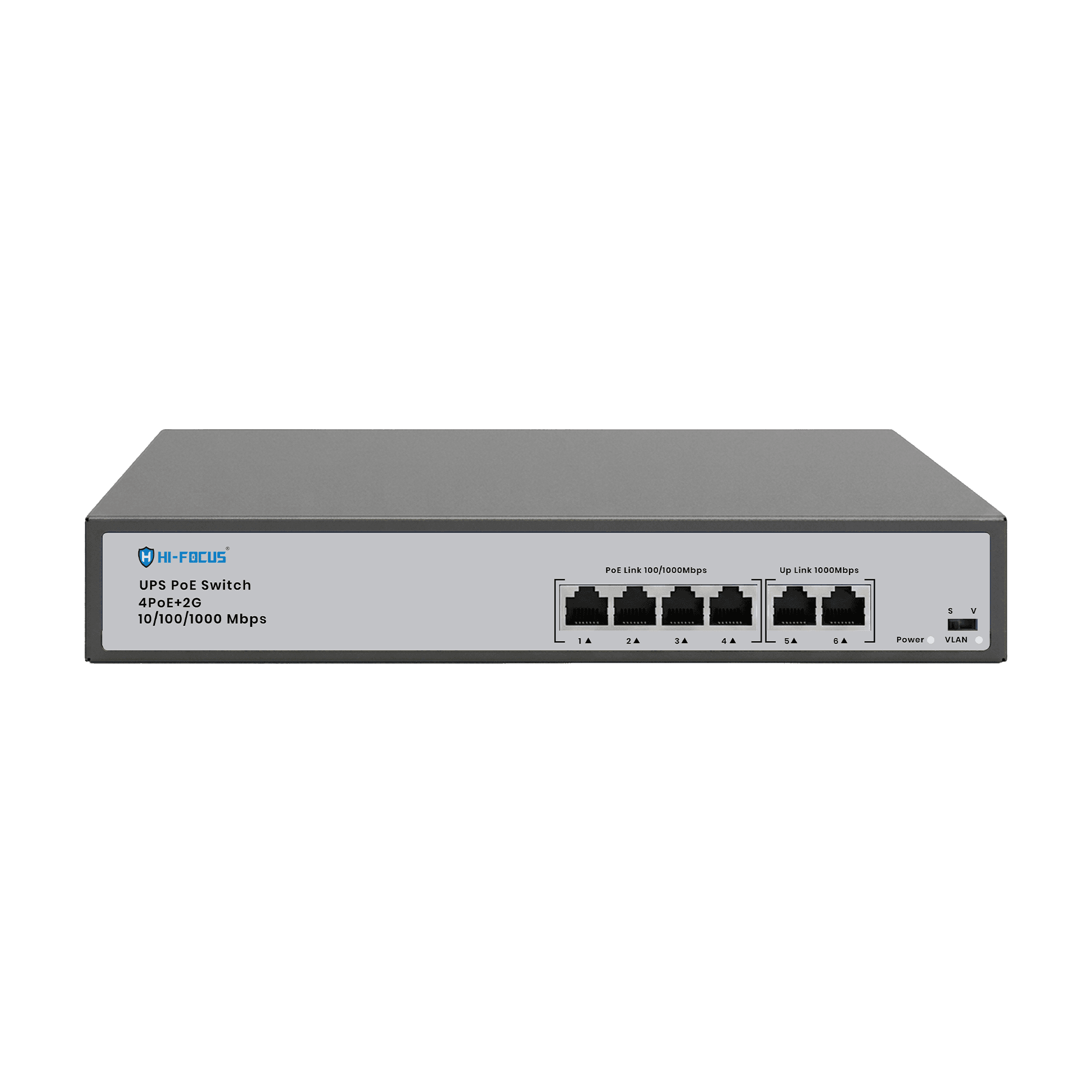

4 PORT GIGA POE SWITCH

HF-SG04G2-75WG

Supply 4*10/100/1000 Mbps RJ45 self-adaption, high-speed forwarding and non-packet loss RJ45 port
Supply 2*10/100/1000 Mbps RJ45 uplink port
All ports supported by MDI/MDIX auto flip and self
negotiation. Support IEEE802.3X Full-duplex and backpressure
for half-duplex mode
4*10/100/1000 Mbps RJ45 port support POE+, meets the requirements for security monitoring, teleconference system,
and wireless coverage
Detect the PD devices automatically and supply the power without damaging non-POE devices

Specifications

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

4*10/100/1000Mbps RJ45 port 2*10/100/1000Mbps RJ45 uplink port

4*10/100/1000Mbps RJ45 port support POОЕ+ The whole power is 78W Each port max. power supply reached 30w

Both1/2+, 3/6- and 4/5+, 7/8- End-span

Store and forward MAC address table 2k Switching capacity 12Gbps

10BASE-T:14880PPS/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port

Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode

Operating Temperature: -10°C--55°C

Built in power base board Input: 220V, 50HZ, Output: DC52V±5% 1.5A ≤78W

1KG 200mmx118mmx44mm (LxWxH)
