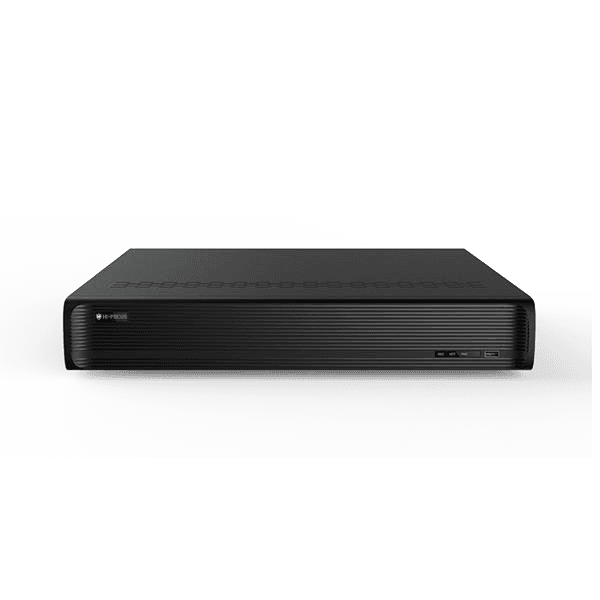

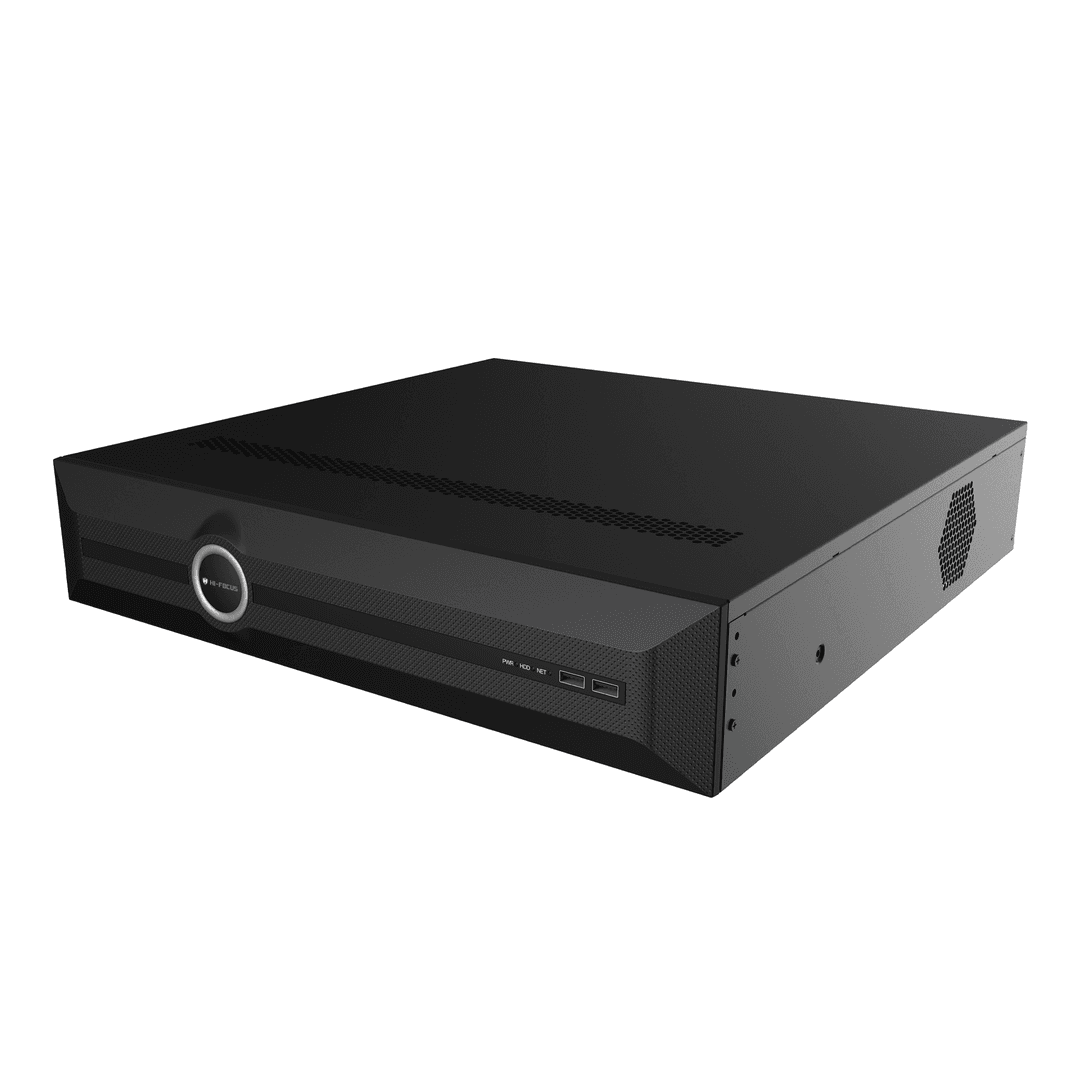

32 CHANNEL 8 SATA NETWORK VIDEO RECORDER

HD-NVR-4328H8-4K

Product Features

40 CH NVR – 400Mbps Incoming / 400Mbps Outgoing Bandwidth
Max Resolution – 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF Compression – Smart H.265+ / H.265 / H.264+ / H.264
Video Output – HDMI Upto 4k & VGA up to 1080P
Multi Display – 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/ R 25/32/36/40
Playback – 16 CH Simultaneous Playback
Storage – 8× SATA Up to 24TB HDD Capacity
AI by Camera – Tripwire, Double Tripwire, Perimeter, Object Abandon/Missing, Loitering, Face Detection, Running, Parking, Crowd Detection etc. AI by NVR - Face Detection/ Recognition, Video Structuralization, Tripwire, Double Tripwire, Running, Parking, Heatmap etc.
Processor - Industrial Grade Embedded Processor
Operating System - Embedded Linux OS

Specifications

Video and Audio
Recording
PLAYBACK
ALARM
Intelligent Analytics
NETWORK
Face Recognition
AI Performance(AI by NVR)
Storage
INTERFACE
General

Video and Audio

Channel

Incoming Bandwidth

320Mbps

Outgoing Bandwidth

400Mbps(AI on: 200Mbps) R

Resolution

16MP/12MP/8MP/6MP/5MP/ 4MP/3MP/1080P/UXGA/720P/ VGA/4CIF/DCIF/2CIF/CIF/ QCIF

Preview Decoding Capability

16MP(30fps)×3, 12MP(30fps)×4, 8MP(30fps)×7, 6MP(30fps)×9, 5MP(30fps)×11, 4MP(30fps)×14, 3MP(30fps)×18, 1080P(30fps)× 28, 720P(30fps)×40, 4CIF (30fps)×40 (AI on：16MP(30fps) ×2, 12MP(30fps)×3, 8MP(30fps) ×5, 6MP(30fps)×6, 5MP(30fps) ×8, 4MP(30fps)×10, 3MP(30fps) ×13, 1080P(30fps)×20, 720P (30fps)×40)

Compatibility

ONVIF(Profile S/T/G), CGI, SDK, P2P

HDMI Output

HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720 (50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1366×768 (60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K) 3840×2160(30Hz/60Hz)

VGA Output

VGA: 800×600(60Hz),1024x768 (60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz),1280×1024 (60Hz), 1366×768(60Hz), 1440×900(60Hz),1920×1080 (50Hz/60Hz)

Multi-screen Display

Independent Output: HDMI1/VGA1: 1/2A/2B/3/4/5/6 /7/8/9/10/12/13/16/20A/20B/25 /32/36/40 HDMI2/VGA2: 1/2A/ 2B/3/4/5/6/7/8/9/10/12/13/16/ 20A/20B/25/32/36/40

Audio Input

1CH

Audio Output

1CH

Two-Way Audio

1CH

Recording

Multi-channel Playback

Record Mode

Automatic, Manual Recording, Alarm Recording, Schedule Recording

Storage Method

Local HDD, eSATA

Backup

USB storage device, eSATA, Network

Playback Function

Play/Pause/Stop/Reverse/ Frame by Frame/Slow/Speed/ Backwards 30s/Forwards 30s /Full Screen/ Backup (Video Editing)/Step/ Digital Zoom/Instant Replay

Dual Stream Record

Yes

PLAYBACK

Simultaneous Playback

Max 16 CH

Search

Time Slice/Time/Event/Tag Search

Smart Search

Highlighted Color to Display the Camera recordin a Certain Period of Time, Different Color refer to Different Record Events

Function

Play,Pause,FF,FB,Digital Zoom,etc

ALARM

General Alarm

Motion Detection, Mask Alarm, Alarm Input(IPC), Alarm Input (NVR)

Exception Notification

Video Loss, Network Disconnected, No Disk, Illegal Access, Disk group space alert, Disk Full, Disk R/W Error, Recording Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk, Hot-spare Exception, Array Exception, Voltage Alarm(IPC), RTC Failure, IP Address Conflict, MAC Address Conflict, Disk Overload

Alarm I/O

16CH IN / 4CH OUT

Intelligent Analytics

AI by Camera

Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Running, Parking, Heatmap, Loitering, Video Abnormal, Audio Abnormal, On Duty Detection, Crowd Detection, Safety Helmet Detection, Electric Bicycle Detection, People Counting, Link to Tracking, Smoke and Fire Detection, Environmental Temperature Measurement, Face Detection, Human Body Temperature Measurement, Smart Alarm, Face Recognition, Human/Vehicle Classification

VCA Search

Early-warning Search, Behavior Search, Safety Helmet Search, Thermographic Retrieval, Duty Search, Electric Bicycle Retrieval, Face Search(Search by face attributes/ event/ picture), Sleeping on Duty Detection, Smart Motion Detection, Human Search(Search by human attributes

VCA Report

Heatmap, People Counting, Face Statistics

NETWORK

Network Protocol

802.1X, ARP, DDNS, DHCP, DNS, Easy DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMB/ CIFS, SMTP, SNMP v1/v2/v3, SRTP, SSH, SSL, TLSv1.2, TCP, UDP, Unicast, UPnP

Moblie Client System Compatibility

Android, iOS ONVIF(Profile S,T,G), RTSP, CGI, SDK, P2P

Web

IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+

Face Recognition

Face Attributes Detection

Gender, Age, Glasses, Face Mask

Face Attributes Search

Gender, Age, Glasses, Face Mask, Body Temp

Face Recognition Performance

8-ch(1080P) video streams or 32-ch image streams

Face Picture Library

Up to 20 face libraries Up to 100000 base images

Video Structuralization Performance

8-ch(1080P) (excludes vehicle detection)

Human Attributes Detection

Gender, Age, Backpack, Face Mask, Glasses, Hair, Carrying Status, Top Color, Bottom Color, Top Type, Bottom Type, Riding Status, Hat

Human Attributes Search

Gender, Age, Backpack, Face Mask, Glasses, Hair, Carrying Status, Top Color, Bottom Color, Top Type, Bottom Type, Riding Status, Hat

AI Performance(AI by NVR)

Perimeter/Tripwire Performance

24CH

Object Abandon/Missing Performance

8CH (1080P)

Sleeping on Duty Performance

8CH (1080P

On Duty Performance

8CH (1080P

Loitering/Running Performance

8CH (1080P)

Parking Performance

8CH (1080P

Heatmap Performance

8CH (1080P)

Smart Motion Dection Performance

32CH

People Counting Performance

8CH (1080P

Storage

Hard Disk Capacity

8 × SATA up to 24 TB

RAID

JBOD, RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60

INTERFACE

eSATA

1×eSATA

USB

Network Interface

2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port

RS-232

1×RS-232

RS-485

2×RS-485

General

Power Supply

100~240V AC

Power Consumption

≤18W (HDD not included)

NetWeight

6.2Kg

GrossWeight

8.4Kg

Form Factor

440(L) 455(W) 94(H) mm

Boundary Dimensions

565(L) 565(W) 220(H)mm

Package Dimensions

565(L) 565(W) 220(H)mm

Operating Temperature

-10°℃~+55℃(+14°F~+131°F)

Operating Humidity

10%~90%RH (non-condensing)

Storage Temperature

-20°C~+60°C (-4°F~+140°F
